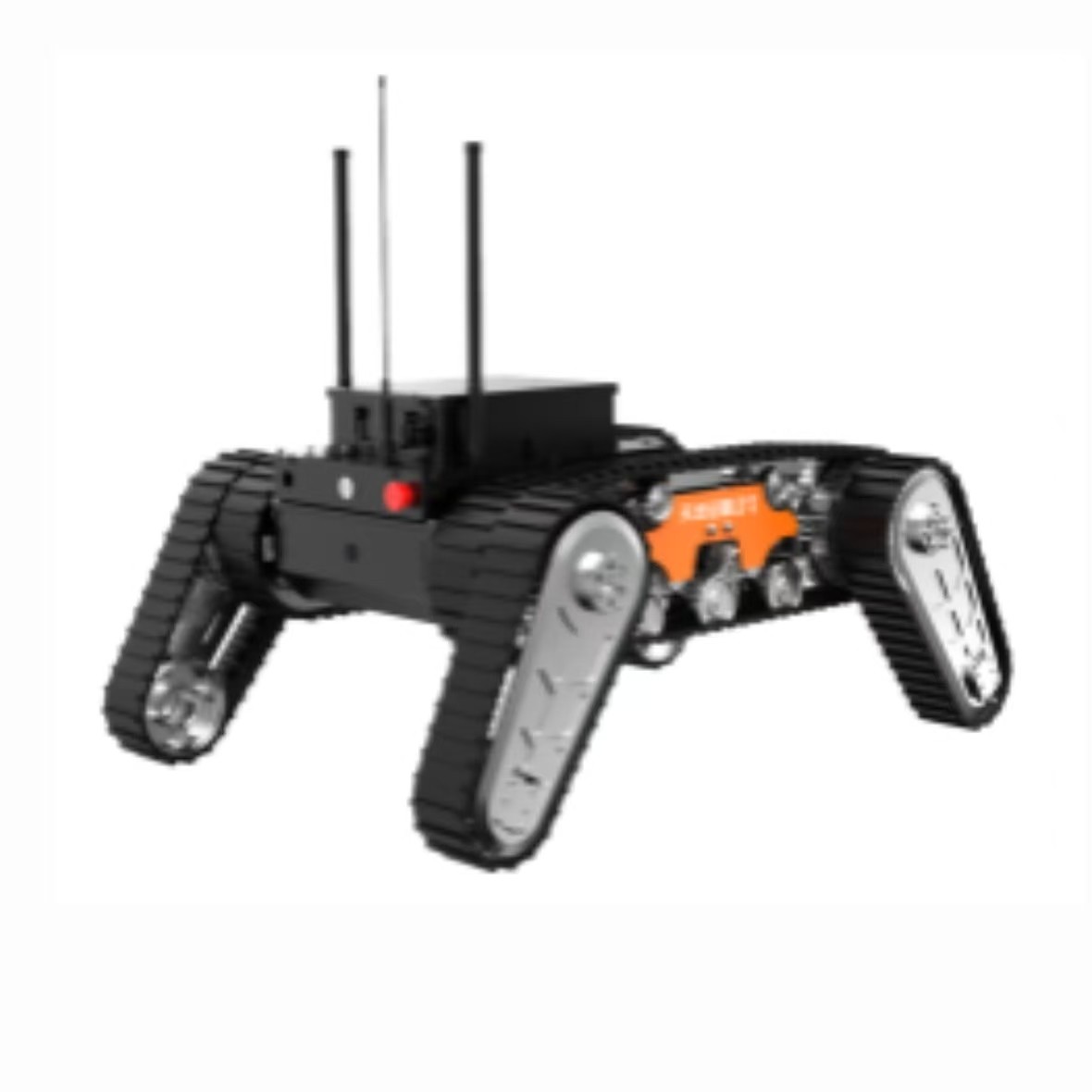

Medium sized double swing arm tracked robot chassis

Productomschrijving

Overview:
Double arm tracked chassis, using lithium battery power as the robot's power source. High passability, fast speed, up to 1.9m/s at the fastest. IP67, High protection level, suitable for various complex terrains. At the same time, the whole machine adopts a modular design, and the battery can be quickly disassembled, maintained, and replaced. It can be equipped with multiple modules to replace humans for efficient operations.


Features:

Robot Machine:
1. Name: Medium sized Double Swing Arm Tracked Robot Chassis
2. Model: DRAGON-03
3. Basic functions: Explosive ordnance disposal, video reconnaissance function
4. Protection level: Robot machine protection level IP67
5. Power: Electric, ternary lithium battery
6. Size: ≤ 973mm in length, 700mm in width, and 621mm in height
7. Turning diameter: Rotate in place
8. Weight: ≤ 75kg
9. Maximum speed in a straight line: ≥ 1.9m/s, remote control continuously variable transmission
10. Straight running deviation: ≤ 5%
11. Braking distance: ≤ 0.3m
12. Climbing ability: ≥ 35°
13. Climbing ability: ≥ 30°
14. Trench crossing ability: ≥ 500mm
15. Obstacle height: ≥ 320mm
16. Water wading ability: ≥ 185mm
17. Continuous working time: ≥ 3h
18. Robot Tracks: The tracks used for explosive disposal robots should be made of flame-retardant, anti-static, and high-temperature resistant rubber; The interior of the track is made of Kevlar fiber cable and has a track derailment protection design
