Lightweight Explosive Disposal Robot with 10KG Grab & 500m Range
Lightweight Explosive Disposal Robot with 10KG Grab & 500m Range Lightweight Explosive Disposal Robot with 10KG Grab & 500m Range Lightweight Explosive Disposal Robot with 10KG Grab & 500m Range Lightweight Explosive Disposal Robot with 10KG Grab & 500m Range
Contact nu

Lightweight Explosive Disposal Robot with 10KG Grab & 500m Range

Plaats van herkomst: CHINA Merknaam: topsky

Gedetailleerde informatie
Meetbereik: 0-550mg/100ml Heftigheid: 1200mm×80mm
Ontdek wijze: Automatisch De capaciteit van gebroken glas: ≤ 12 mm gehard glas
Gronddiameter: 38 mm Andere naam: Beschermende kleding voor medische isolatie
Hoek: 120 graden De manipulator maximaal vasthouden: 10kg
Leven: 100 schietpartijen Controle: Batterij aangedreven
Beschermingsniveau: NIJ-Niveau IIIA Hoofdmotor gewicht: 28 kg
Stroomtoevoer van het systeem: AC220V/80W Purple Light Power: 700mW
Verticale Aanpassing: 030cm
Markeren:

lightweight explosive disposal robot

,

10kg grab bomb disposal robot

,

500m range counter terrorism robot

Productomschrijving

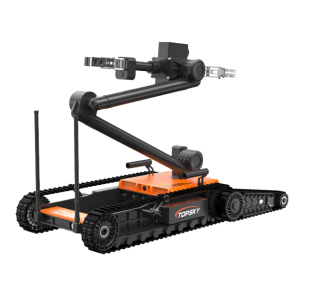

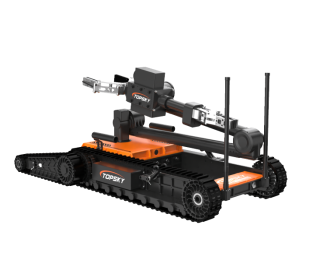

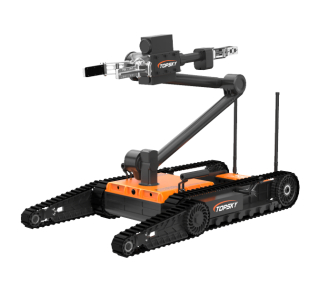

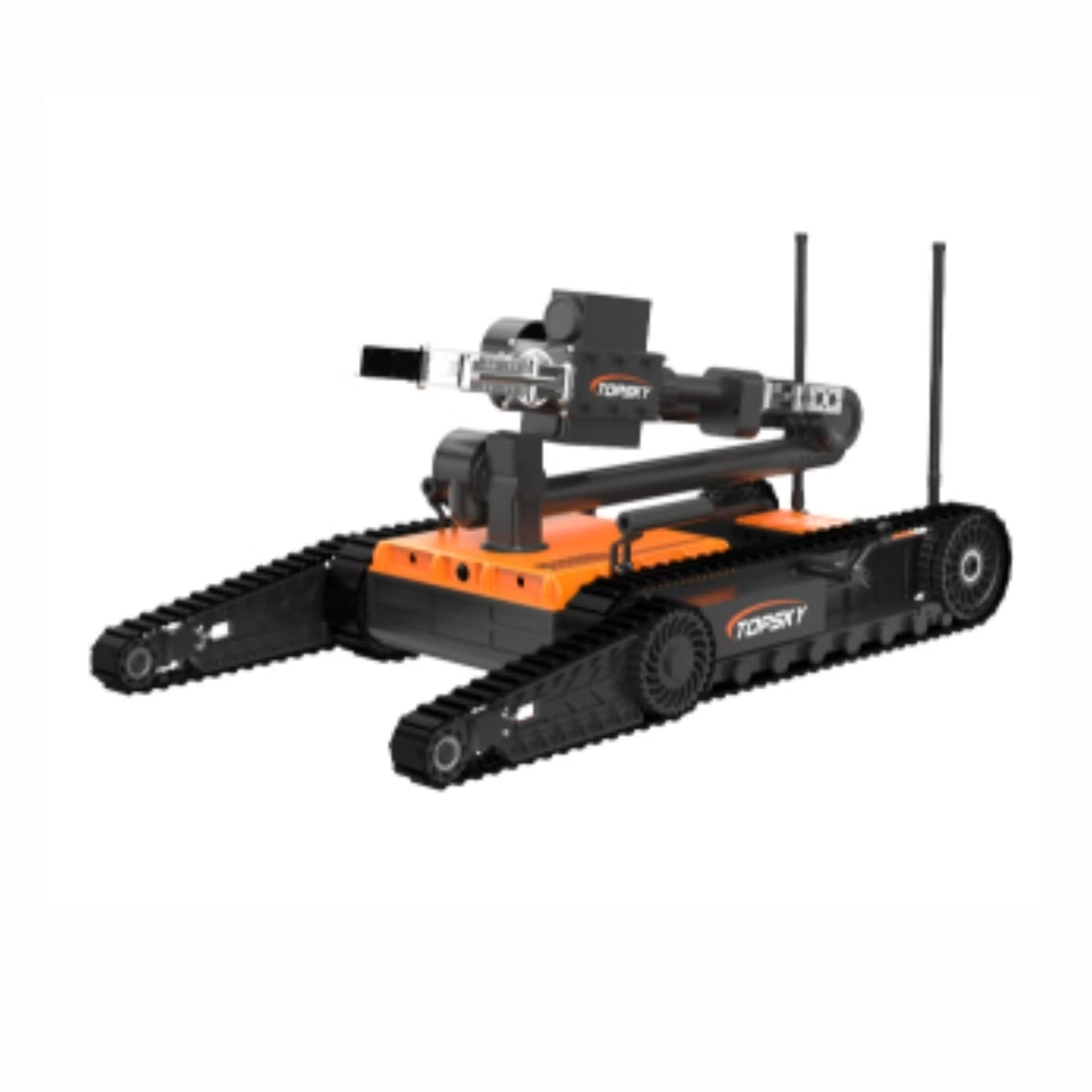

Lightweight Explosive Ordnance Disposal Robot
Overview
Designed for explosive handling and reconnaissance in inaccessible terrain, this EOD robot features a 7-degree-of-freedom robotic arm capable of rotating at various angles. The arm can lift up to 16kg at the proximal end and 3kg at the gripper, and can be equipped with explosive destruction devices for on-site neutralization.
Key Features
  • Advanced Robotic Arm: 7 degrees of freedom with 15 preset shortcut functions and one-click reset
  • Superior Mobility: Climbs 45° slopes, 43° stairs, overcomes 30cm obstacles, and crosses 40cm trenches
  • Enhanced Vision System: 4 HD cameras plus 1 pan-tilt-zoom camera with 1km communication range
  • Modular Design: Robotic arm, battery, and control box components for easy maintenance
  • Dual Control: Wired operation capability for environments with network interference
Technical Specifications
Model ER3 Generation 9
Dimensions ≤ 830mm (L) × 600mm (W) × 450mm (H) in transport state
Weight ≤ 37kg
Power Lithium Polymer Battery
Max Speed ≥ 1.8m/s with variable speed control
Operation Time ≥ 4 hours continuous
Control Range ≥ 500m wireless (visual)
Protection Rating IP65 (whole machine)
Compliance GA/T 142-1996 Police Industry Standard
Performance Capabilities
  • Slope climbing: ≥ 45°
  • Stair climbing: ≥ 43°
  • Obstacle clearance: ≥ 300mm
  • Trench crossing: ≥ 400mm
  • Water fording: 200mm depth
  • Braking distance: ≤ 0.1m
  • Straight running deviation: ≤ 3%
