Portable Dust Measurement Instrument with 4G Transmission and 0.001mg/m3 Resolution for 0.001mg/m3 to 50mg/m3 Range

Plaats van herkomst: China Merknaam: topsky

Gedetailleerde informatie

Golflengte: 447nm;415nm Garantie: 5 jaar
De Pixelgrootte: : ca. 160 μm. Lawaai: minder dan 30dB
Nadrukwaaier: 0.3m~ Verticale Aanpassing: 030cm
Verre grootte: 278*184*43mm Afmeting van het gehoorapparaat: 210*100*100 mm
Nekbeschermer: 850m/s Model: RXR-M80D
Alarmtype: Lichtgeluid en trillingen Beacher Grootte: 73 x 16 x 50 cm
Vergroot: Zestien keer. Maximale lineaire snelheid: ≥1,52 m/s, externe controle stepless snelheid
Producttype: Apparatuur
Markeren:

4G Transmission Dust Measurement Instrument

,

0.001mg/m3 Resolution Dust Concentration Meter

,

0.001mg/m3 to 50mg/m3 Range Dust Monitor

Productomschrijving

Dust Measurement Instrument
Product Overview

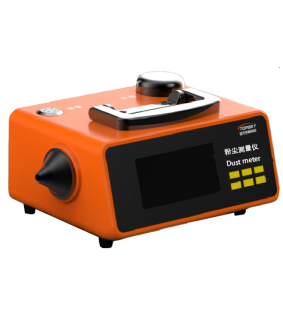

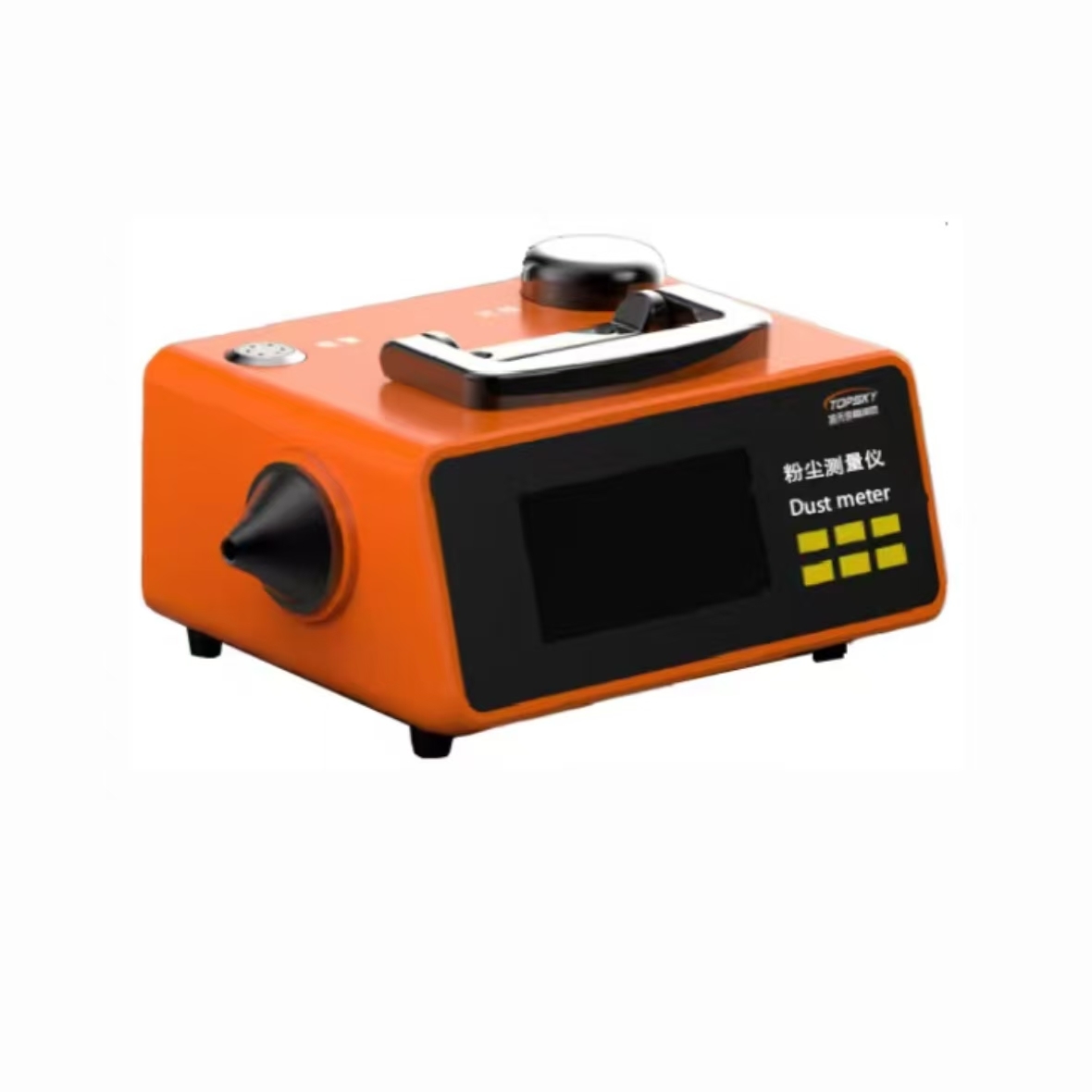

The CCZ500 dust measurement instrument is a portable, easy-to-use device that provides direct readings of dust concentration. Utilizing advanced light scattering technology with an infrared laser and imported photomultiplier tubes, it converts scattered light intensity into electrical signals to calculate mass concentration. This instrument features:
  • Fast, accurate measurements with high sensitivity
  • Stable performance with strong load capacity
  • Low susceptibility to optical path dust accumulation
  • Configurable alarm thresholds with audible/visual alerts
  • 4G data transmission for real-time monitoring
  • Compliant with MT163-1997, JJG846-2015, GB 20964-2007, and GB3836.4-2010 standards
Key Features
  • Lightweight: Compact and portable design for easy measurement
  • Efficient: Direct reading with one-button operation and 1-minute results
  • High Precision: Resolution of 0.001mg/m³
  • Automatic Alarm: Customizable threshold alerts
  • Data Processing: Scheduled sampling with TWA calculation
  • Networking: 4G transmission for real-time data visualization
  • Maintenance-free: No cleaning required for sensor module
  • Integrated: Durable, reliable design with attractive appearance
Technical Specifications
Dust Measurement Instrument
Measurement Range 0.001mg/m³ ~ 50mg/m³ (accuracy 0.001mg/m³)
0.01mg/m³ ~ 150mg/m³ (accuracy 0.01mg/m³)
Relative Error ≤ 10%
Measurement Time 1 minute (standard measurement time)
Alarm Function Built-in with customizable concentration settings
Data Storage Up to 9999 data sets
Calculations Automatic time-weighted average (TWA)
Network Function 4G transmission of dust concentration, temperature, humidity, and GPS data
Display 4.3-inch LCD screen
Working Time ≥ 6 hours
